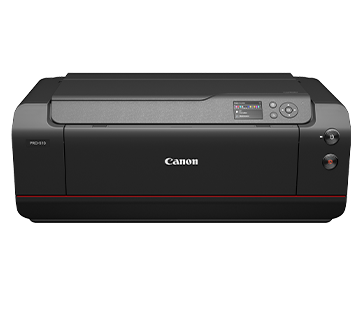

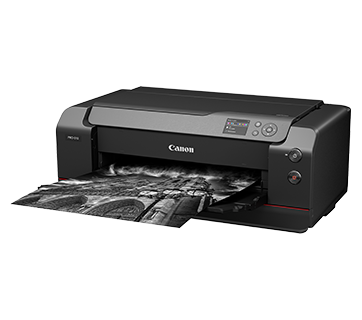

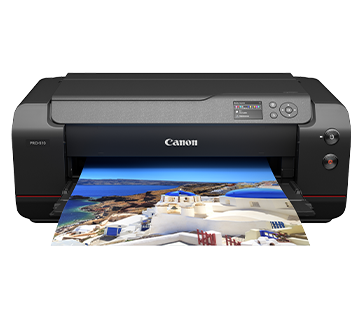

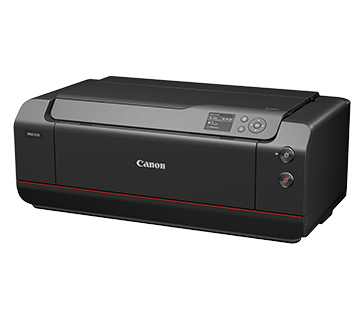

ImagePROGRAF PRO-510

Name: ImagePROGRAF PRO-510
Brand: PrintSaver
Price: 6020.0 MYR
Availability: InStock

3542+ Reviews!

RM6,020.00 MYR

Quantity

Download Brochure

Print

Print Head/Consumables
Number of Nozzles	Total 18,432 nozzles
Ink Tank (Type/Colours)	PFI-4810 (Pigment Ink/Matte Black, Photo Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimizer)
Ink Capacity	80 ml
Level Detection	Detected by dot count and electrode (empty)
Maintenance Cartridge	MC-20
Maximum Printing Resolution	2,400 (Horizontal)^*1 x 1,200 (Vertical) dpi
*Print Speed^2(Approx.)**
Photo (A2) (Mono/Colour, PT-101) High	8 min 40 sec / 6 min
Photo (A2) (Mono/Colour, LU-101) Standard/High	3 min 40 sec / 6 min
Photo (A2) (Mono/Colour, PM-101) High/Highest	5 min 35 sec / 7 min 30 sec
Photo (A3+) (Mono/Colour, PP-201) Standard (Mono/Colour, LU-101) Standard	2 min 25 sec

Paper Handling

Print Margin
Borderless Printing	Top/Bottom/Left/Right: 0 mm
Bordered Printing	Printable Area: Top: 3 mm, Bottom: 5 mm Left/Right: 3.4 mm (LTR, LGL: Left: 6.4 mm, Right: 6.3 mm) Recommended Area: Top: 57 mm, Bottom: 55 mm Left/Right: 3.4 mm (LTR/LGL: Left: 6.4 mm, Right: 6.3 mm)
Supported Media
Top Tray	Plain Paper (64 - 105 g/m²) Canon: Photo Paper Plus Glossy II (PP-201, PP-208) Photo Paper Plus Semi-Gloss (SG-201) Photo Paper Pro Luster (LU-101) Photo Paper Pro Platinum (PT-101) Matte Photo Paper (MP-101) Others: Photo Paper Pro Crystal Grade Inkjet Hagaki Hagaki A Lightweight Photo Paper Heavyweight Fine Art Paper Japanese Paper Washi Canvas Photo Paper (Greyscale Printing) Photo Paper (Long-Form Printing) Fine Art Paper (Long-Form Printing) Special 1-10
Manual Feed	Canon: Photo Paper Plus Glossy II (PP-201, PP-208) Photo Paper Plus Semi-Gloss (SG-201) Photo Paper Pro Luster (LU-101) Photo Paper Pro Platinum (PT-101) Matte Photo Paper (MP-101) Premium Fine Art Rough (FA-RG1) Premium Fine Art Smooth (FA-SM2) Others: Photo Paper Pro Crystal Grade Photo Paper Pro Premium Matte A Lightweight Photo Paper Heavyweight Photo Paper Heavyweight Fine Art Paper Extra Heavyweight Fine Art Paper Highest Density Fine Art Paper Japanese Paper Washi Canvas Baryta Photo Paper Photo Paper (Greyscale Printing) Fine Art Paper (Greyscale Printing) Photo Paper (Long-Form Printing) Fine Art Paper (Long-Form Printing) Special 1-10
Paper Size
Top Tray	A5, A4, A3, A3+, A2, B5, B4, B3, LTR, LGL, LDR, Hagaki, Return Hagaki, L, 2L, 4 x 6 ", 5 x 7", 9 x 13", 11 x 14", 13 x 19" Super B, US Photo 16 x 20", 17 x 22", 17 x 25", 7 x 10", 8 x 10", 10 x 12", 12 x 12", 14 x 17"
Manual Feed	A4, A3, A3+, A2, B4, B3, LTR, LGL, LDR, 9 x 13", 11 x 14", 13 x 19" Super B, US Photo 16 x 20", 17 x 22", 17 x 25", 8 x 10", 10 x 12", 12 x 12", 14 x 17"
Borderless Printing	A4, A3, A3+, A2, B4, LGL, LTR, Hagaki, L, 2L, 4 x 6", 5 x 7", 13 x 19" Super B, 17 x 22", 17 x 25", 8 x 10", 10 x 12", 14 x 17", 210 x 594 mm
Paper Thickness
Top Tray	0.1 - 0.3 mm: Plain Paper (64 - 105 g/m²) Special Paper (64 - 300 g/m²)
Manual Feed	0.1 - 0.7 mm: Special Paper (64 - 400 g/m²)
Paper Width
Top Tray	89 - 432 mm
Manual Feed	203.2 - 432 mm
Minimum Printable Paper Length
Top Tray	127 mm
Manual Feed	254 mm
Maximum Printable Paper Length	3,276.7 mm
Media Storage Capacity (Max.)	35
Maximum Capacity
Top Tray	Plain Paper: A5, A4, A3, B5, B4, LTR, LGL, LDR = 150, A2, B3 = 20 Photo Paper Plus Glossy (PP-201): A3, A3+ = 10 Photo Paper Plus Glossy (PP-208): 4 x 6" = 20 A4 = 10 Photo Paper Plus Semi-Gloss (SG-201): 4 x 6" = 20 Matte Photo Paper (MP-101): A4, A3 = 10 Photo Paper Pro Platinum (PT-101): 4 x 6" = 20 A4, A3, A3+ = 10 A2 = 1 Photo Paper Pro Luster (LU-101): A4, A3, A3+ = 10 A2 = 1
Manual Feed	Photo Paper Plus Glossy II (PP-201, PP-208): A4, A3, A3+ = 1 Matte Photo Paper (MP-101): A4, A3 = 1 Photo Paper Pro Luster (LU-101)/ Photo Paper Pro Platinum (PT-101)/ Photo Paper Pro Premium Matte (PM-101)/ Premium Fine Art Rough (FA-RG1)/ Premium Fine Art Smooth (FA-SM2): A4, A3, A3+, A2 = 1

Network

Protocol	SNMP, HTTP, TCP/IP (IPv4/IPv6)
Wired LAN
Type	IEEE 802.3ab (1000BASE-T) / IEEE 802.3u (100BASE-TX) / IEEE 802.3 (10BASE-T)
Data Rate	1,000 Mbps / 100 Mbps / 10 Mbps (auto switchable)
Security	IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP)
Wireless LAN
Type	IEEE 802.11b/g/n 2.4 GHz, Supported Channels: 1 - 13
Security	WPA-PSK (AES) WPA2-PSK (AES) WPA3-SAE (AES) WPA-EAP (AES)^3 WPA2-EAP (AES)^3 WPA3-EAP (AES)^*3
Direct Connection (Wireless LAN)	Available

Printing Solutions

Canon Printing Apps
Mobile	Canon PRINT, Easy-PhotoPrint Editor
Others	PosterArtist Lite, PosterArtist (Web), Professional Print & Layout, Media Configuration Tool, Easy-Layout Editor
Mobile/Cloud Printing Solutions	AirPrint®, Mopria® Print Service, Canon Print Service (Android), Wireless Direct, Cloud Integration Service (via smartphone/tablet)

System Requirement

OS System Compatibility^*4

Windows 11 / 10 / 8.1 / 7 SP1,
macOS 11.7.10 ~ 14 or later,
ChromeOS

General Specifications

Operation Panel
Display	3.0" Colour LCD Display
Interface	USB 2.0
*Operating Environment^5**
Temperature	5 - 35°C
Humidity	10 - 90% RH (no dew condensation)
*Recommended Environment^6**
Temperature	15 - 30°C
Humidity	10 - 80% RH (no dew condensation)
Storage Environment
Temperature	0 - 40°C
Humidity	5 - 95% RH (no dew condensation)
Quiet Mode	Available
Acoustic Noise (PC Print)
Photo Paper Pro Platinum, PT-101 (4 x 6", Colour Borderless)	43.0 dB(A)
Power Requirements	AC 100 - 240 V, 50/60 Hz
Power Consumption (Approx.)
OFF	0.1 W
Standby (Sleep)	1.2 W
Operation	38 W
Dimensions (WxDxH)
Factory Configuration	723 x 435 x 285 mm
Weight	32.4 kg

Page Yield^*7

Photo Paper (LU-101)
Click here for more information

A2 Mono^*8
PFI-4810 MBK: 1,455 sheets
PFI-4810 PBK: 194 sheets
PFI-4810 GY: 102 sheets
PFI-4810 PGY: 257 sheets
PFI-4810 PC: 1,285 sheets
PFI-4810 C: 830 sheets
PFI-4810 PM: 1,065 sheets
PFI-4810 M: 1,580 sheets
PFI-4810 Y: 1,305 sheets
PFI-4810 R: 2,185 sheets
PFI-4810 B: 915 sheets
PFI-4810 CO: 525 sheets

A2 Colour^*8
PFI-4810 MBK: 1,830 sheets
PFI-4810 PBK: 224 sheets
PFI-4810 GY: 143 sheets
PFI-4810 PGY: 356 sheets
PFI-4810 PC: 595 sheets
PFI-4810 C: 780 sheets
PFI-4810 PM: 419 sheets
PFI-4810 M: 1,130 sheets
PFI-4810 Y: 321 sheets
PFI-4810 R: 815 sheets
PFI-4810 B: 940 sheets
PFI-4810 CO: 565 sheets

A3+ Colour^*8
PFI-4810 MBK: 2,725 sheets
PFI-4810 PBK: 344 sheets
PFI-4810 GY: 225 sheets
PFI-4810 PGY: 555 sheets
PFI-4810 PC: 925 sheets
PFI-4810 C: 1,215 sheets
PFI-4810 PM: 650 sheets
PFI-4810 M: 1,670 sheets
PFI-4810 Y: 321 sheets
PFI-4810 R: 815 sheets
PFI-4810 B: 940 sheets
PFI-4810 CO: 565 sheets

Ink droplets can be placed with a pitch of 1/2,400 inch at minimum.
Print speed is based on the default setting using ISO/JIS-SCID N5 and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
Available with IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP).
Please visit https://asia.canon/support to check OS compatibility and to download the latest driver updates.
The performance of the printer may be reduced under certain temperature and humidity conditions.
For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions.
Page yields may vary depending on content coverage, print settings, temperature, humidity, and frequency of printing.
Declared yield value is the estimated value based on Canon individual test method using the ISO/IEC 29103 chart.

Disclaimer

To maintain optimal printer performance, Canon printer automatically perform cleaning based on its condition. During this cleaning process, a small amount of ink is consumed, which may include all colours of ink.
[Cleaning Function]
The cleaning function helps remove air bubbles or clogs from the print head nozzles, preventing degradation in print quality or nozzle blockages.
Replacement parts for printers will be available for five years after production is discontinued. Depending on your model, we may recommend replacing it with a new unit or one that offers similar performance as part of our maintenance service. In such cases, you may find that supplies or accessories for your model are no longer available, or that compatible operating systems may change.
To achieve optimal print quality, use the ink within six months of opening.
Depending on your device, whether it is a computer or a smartphone and its operating system, the estimated ink level information displayed on your screen may differ from what appears on the printer's operation panel. Additionally, some parts of the estimated ink level message shown on the printer may not be visible or may appear at different times. Canon recommends using the information displayed on the printer's operation panel as your primary reference, noting that this information serves only as a guideline.
Depending on the type of paper and print settings, colour ink may still be used even when you print a monochrome document. If any colour of ink runs out, you will need to replace the ink cartridge.
You must install ink cartridges of all colours, regardless of whether you are printing in monochrome or colour. If any ink cartridges is not installed, an error will occur, and printing will not be possible.
When you use the Canon printer for the first time after installing the bundled ink cartridges, the printer consumes a small amount of ink to fill the nozzles of the print head. As a result, the number of sheets you can be printed with the initial set of ink cartridges is fewer than the subsequent cartridges.
The printing costs mentioned in the brochures or on the website are based on consumption data from the second and subsequent ink cartridges, not the first one.
For warranty details, please contact a Canon authorised sales representative in your country or region.
Please be aware that if a problem arises from using non-genuine ink cartridges (including those refilled with non-genuine ink through methods such as making a hole in the cartridge), a fee will be charged for repairs, even during the warranty period. Keep this in mind when using non-genuine ink.
Using non-genuine inks may affect the printer's performance and print quality. In rare cases, where there are no safety concerns, non-genuine inks can cause the print head to overheat and emit smoke due to the absence of certain ingredient found in genuine ink. (Note: This does not apply to usage of all non-genuine inks).
Depending on your device, such as a computer or smartphone and its operating system, the estimated remaining capacity information for the maintenance cartridge displayed on your screen may differ from what is shown on the printer's operation panel. Additionally, the message regarding the estimated remaining capacity of the maintenance cartridge may appear at different times. Canon recommends using the information displayed on the printer's operation panel as your primary reference.

Prices, specifications, availability and terms of offers may change without notice.

Products / Services may be manufactured by and/or supplied to us by third party manufacturers / suppliers for distribution / resale (non-Canon brand products).

Prices above are recommended retail price in Malaysian Ringgit and may change without prior notice.
